환경 테스트 챔버

Overview Specs Downloads FAQ Video

환경 상자는 새롭고 아름다운 제품입니다

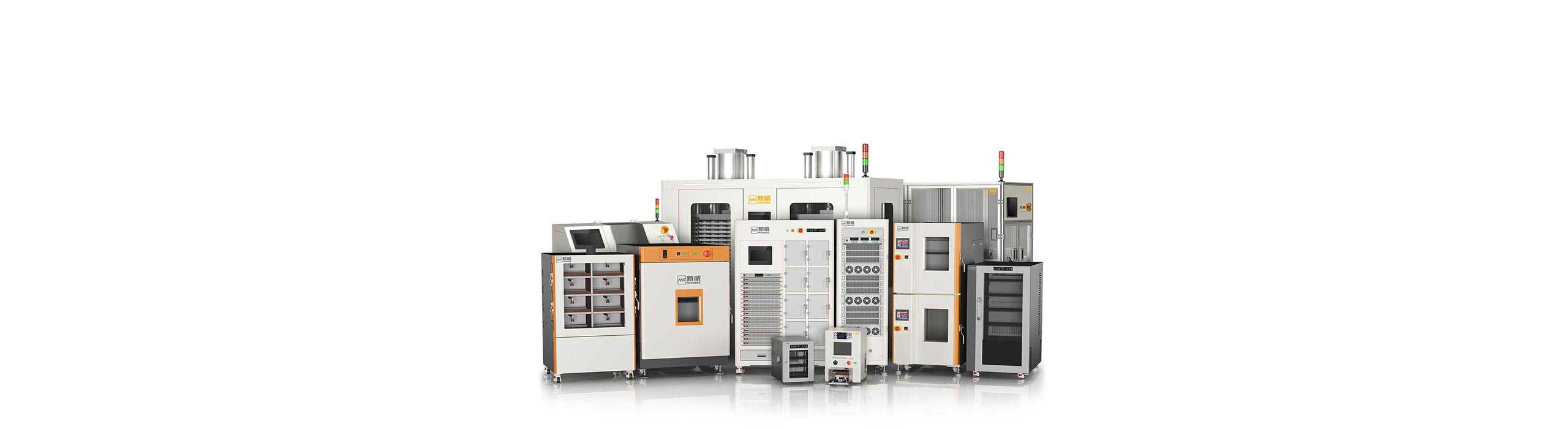

Neware 환경 테스트 챔버 (고온 및 저온 상자, 고온 상자, 인큐베이터 및 방폭 상자라고도 함)는 Neware에서 필요한 고온, 저온 및 일정한 온도를 제공할 수 있는 새로운 에너지 산업의 배터리 테스트를 위해 연구 및 생산했다. 배터리 충전, 방전 및 안전 성능 테스트를 위한 온도 환경 및 연구원이 실험실에서 테스트를 수행할 수 있도록 기후 환경을 시뮬레이션할 수 있다. Neware 환경 테스트 챔버는 또한 학교, 의약, 화학, 환경 보호, 농업, 축산 및 수산 제품 등과 같은 부서뿐만 아니라 전자, 전기, 계측기, 재료 및 반도체와 같은 모든 회사에서 신뢰할 수 있는 장비다.

Suitable is the best. High and Low Environmental Test Chambers .

MGDW Series - High and Low Temperature Chambers (Standard)

Volume: 150L/225L/408L/800L/1000L;
Test Method: GB/T 5170.2-2017;
Temperature Range: -40℃~150℃;
-40℃~+150℃;
-70℃～+150℃;
Temperature Fluctuation: ≤±0.5℃ (no load and stable temperature);
Temperature Deviation: ±2.0℃ (no load and stable temperature);
Heating Up Time: ＋20℃→±150℃≤60min (No load, average nonlinearity);
Cooling Time: ＋20℃→-40℃≤60min (No load, average nonlinearity);

MGDW Series - High and Low Temperature Chambers (Humidity)

MGDW Series - High and Low Temperature Chambers (Flameproof)

Volume: 150L/225L/408L/800L/1000L;
Test Method: GB/T 5170.2-2017；
Temperature Range: -40℃~150℃;
-40℃~+150℃;
-70℃～+150℃;
Temperature Fluctuation: ≤±0.5℃ (no load and stable temperature);
Temperature Deviation: ±2.0℃ (no load and stable temperature);
Heating Up Time: ＋20℃→±150℃≤60min (No load, average nonlinearity);
Cooling Time: ＋20℃→-40℃≤60min (No load, average nonlinearity);
Functions: Explosion-proof pressure-relief port, Smog Testing and automatic (manual) smoke exhaust, etc.

MGDW Series - High and Low Temperature Chambers (Humidity & Flameproof)

MGDW Series - High and Low Temperature Chambers (Automatic Fire Extinguishing & Flameproof)

Volume: 150L/225L/408L/800L/1000L;
Test Method: GB/T 5170.2-2017；
Temperature Range: -40℃~150℃;
-40℃~+150℃;
-70℃～+150℃;
Temperature Fluctuation: ≤±0.5℃ (no load and stable temperature);
Temperature Deviation: ±2.0℃ (no load and stable temperature);
Heating Up Time: ＋20℃→±150℃≤60min (No load, average nonlinearity);
Cooling Time: ＋20℃→-40℃≤60min (No load, average nonlinearity);
Functions: Explosion-proof Pressure-relief Port, Smog Testing, Automatic (Manual) Smoke Exhaust and Carbon Dioxide (CO2) Automatic (Manual) Spray, etc.;

MGDW Series - High and Low Temperature Chambers (Automatic Fire Extinguishing, Flameproof & Humidity)

Volume: 150L/225L/408L/800L/1000L;
Test Method: GB/T 5170.2-2017；
Temperature Range: -40℃~150℃;
-40℃~+150℃;
-70℃～+150℃;
Temperature Fluctuation: ≤±0.5℃ (no load and stable temperature);
Temperature Deviation: ±2.0℃ (no load and stable temperature);
Heating Up Time: ＋20℃→±150℃≤60min (No load, average nonlinearity);
Cooling Time: ＋20℃→-40℃≤60min (No load, average nonlinearity);
Functions: Explosion-proof Pressure-relief Port, Smog Testing, Automatic (Manual) Smoke Exhaust and Carbon Dioxide (CO2) Automatic (Manual) Spray, etc.;

MGDW Series - High and Low Temperature Chambers (Double layer standard)

Volume: 150L/225L;
Test Method: GB/T 5170.2-2017;
Temperature Range: 20℃~150℃; -40℃~150℃;
Temperature Fluctuation: ≤±0.5℃ (no load and stable temperature);
Temperature Deviation: ±2.0℃ (no load and stable temperature);
Heating Up Time: ＋20℃→±150℃≤60min (No load, average nonlinearity);
Cooling Time: ＋20℃→-40℃≤60min (No load, average nonlinearity);

MGDW Series - High and Low Temperature Chambers (Double layer Flameproof)

Volume: 150L/225L;
Test Method: GB/T 5170.2-2017;
Temperature Range: -40℃~150℃;
Temperature Fluctuation: ≤±0.5℃ (no load and stable temperature);
Temperature Deviation: ±2.0℃ (no load and stable temperature);
Heating Up Time: ＋20℃→±150℃≤60min (No load, average nonlinearity);
Cooling Time: ＋20℃→-40℃≤60min (No load, average nonlinearity);
Functions: Explosion-proof pressure-relief port, Smog Testing and automatic (manual) smoke exhaust, etc.

MGDW Series - High and Low Temperature Chambers (Double layer Automatic Fire Extinguishing & Flameproof)

Volume: 150L/225L;
Test Method: GB/T 5170.2-2017;
Temperature Range: -40℃~150℃;
Temperature Fluctuation: ≤±0.5℃ (no load and stable temperature);
Temperature Deviation: ±2.0℃ (no load and stable temperature);
Heating Up Time: ＋20℃→±150℃≤60min (No load, average nonlinearity);
Cooling Time: ＋20℃→-40℃≤60min (No load, average nonlinearity);
Functions: Explosion-proof Pressure-relief Port, Smog Testing, Automatic (Manual) Smoke Exhaust and Carbon Dioxide (CO2) Automatic (Manual) Spray, etc.;

High Temperature Test Chambers (Standard)

Test Method: GB/T 5170.2-2017；
Volume: 100L/150L/225L/408L/800L/1000L；
Temperature Range: (Environmental Temperature +15℃)～150℃；
Temperature Fluctuation:≤±0.5℃ (no load and stable temperature);
Temperature Deviation: ±2.0℃ (no load and stable temperature);
Heating Up Time: (Environmental Temperature +15℃)→+150℃ ≤ 40 min；

High Temperature Test Chambers (Explosion proof)

Test Method: GB/T 5170.2-2017；
Volume: 100L/150L/225L/408L/800L/1000L；
Temperature Range: （Environmental Temperature +15℃）～150℃；
Temperature Fluctuation: ≤±0.5℃ (no load and stable temperature);
Temperature Deviation: ±2.0℃ (no load and stable temperature);
Heating Up Time: (Environmental Temperature +15℃)→+150℃ ≤ 40 min；

High Temperature Test Chambers (Automatic fire extinguishing & Explosion proof)

Test Method: GB/T 5170.2-2017；
Volume: 100L/150L/225L/408L/800L/1000L；
Temperature Range: (Environmental Temperature +15℃)～150℃；
Temperature Fluctuation: ≤±0.5℃ (no load and stable temperature);
Temperature Deviation: ±2.0℃ (no load and stable temperature);
Heating Up Time: (Environmental Temperature +15℃)→+150℃ ≤ 40 min；

25L constant integrated temperature test chambers

Test Method: GB/T 5170.2-2017；
Temperature Range: 0～60℃；
Temperature Fluctuation: ≤±0.5℃ (no load and stable temperature);
Temperature Deviation: ±2.0℃ (no load and stable temperature);
Heating Up Time: 25℃→60℃≤30min (No load, average nonlinearity);
Cooling Time: 25℃→0℃≤50min (No load, average nonlinearity);

200L constant integrated temperature test chambers

300L constant integrated temperature test chambers

500L constant integrated temperature test chambers

Test Method: GB/T 5170.2-2017；
Temperature Range: 0～85℃；
Temperature Fluctuation: ≤±0.5℃ (no load and stable temperature);
Temperature Deviation: ±2.0℃ (no load and stable temperature);
Heating Up Time: 25℃→85℃≤40min (No load, average nonlinearity);
Cooling Time: 25℃→0℃≤50min (No load, average nonlinearity);

25L Constant Temperature Split Test Chambers

Test Method: GB/T 5170.2-2017；
Temperature Range: -20℃～+150℃；
Temperature Fluctuation: ≤±0.5℃ (no load and stable temperature);
Temperature Deviation: ±2.0℃ (no load and stable temperature);
Heating Up Time: +20℃→±150℃≤60min (No load, average nonlinearity);
Cooling Time: +20℃→-20℃≤45min (No load, average nonlinearity);

480L Constant Temperature Split Test Chambers

480L Constant Temperature Split Test Chambers(Export Version)

Dual Temperature Zone Constant Temperature Integrated Chambers

Test Method: GB/T 5170.2-2017；
Temperature Range: 0～60℃；
Temperature Fluctuation: ≤1℃ (Equivalent to ±0.5℃, under no load and stable temperature);
Temperature Deviation: ±2.0℃ (no load and stable temperature);
Heating Up Time: 25℃→60℃≤30min (No load, average nonlinearity);
Cooling Time: 25℃→0℃≤50 min (No load, average nonlinearity);

Dual Explosion-proof Test Chambers (350L)

Nominal Internal Volume: 350L；
Inside Dimensions：W780 mm×D680 mm×H330 mm(单库位)；
Overall Dimensions: W950 mm×D980 mm×H1400 mm；
Net Weight: About 240kg；
Environmental Conditions: Temperature:5℃~35℃; Relative Humidity:≤85%; Atmospheric Pressure:86kPa~106kPa;

20 Storage Location Explosion-proof Test Chambers (220L)

Nominal Internal Volume: 220L;
Inside Dimensions：W180 mm×D350 mm×H180 mm(单库位);
Overall Dimensions: W950 mm×D910 mm×H1600 mm (Without Protrusions);
Net Weight: About 300kg；
Environmental Conditions: Temperature:5℃~35℃; Relative Humidity:≤85%; Atmospheric Pressure:86kPa~106kPa;
